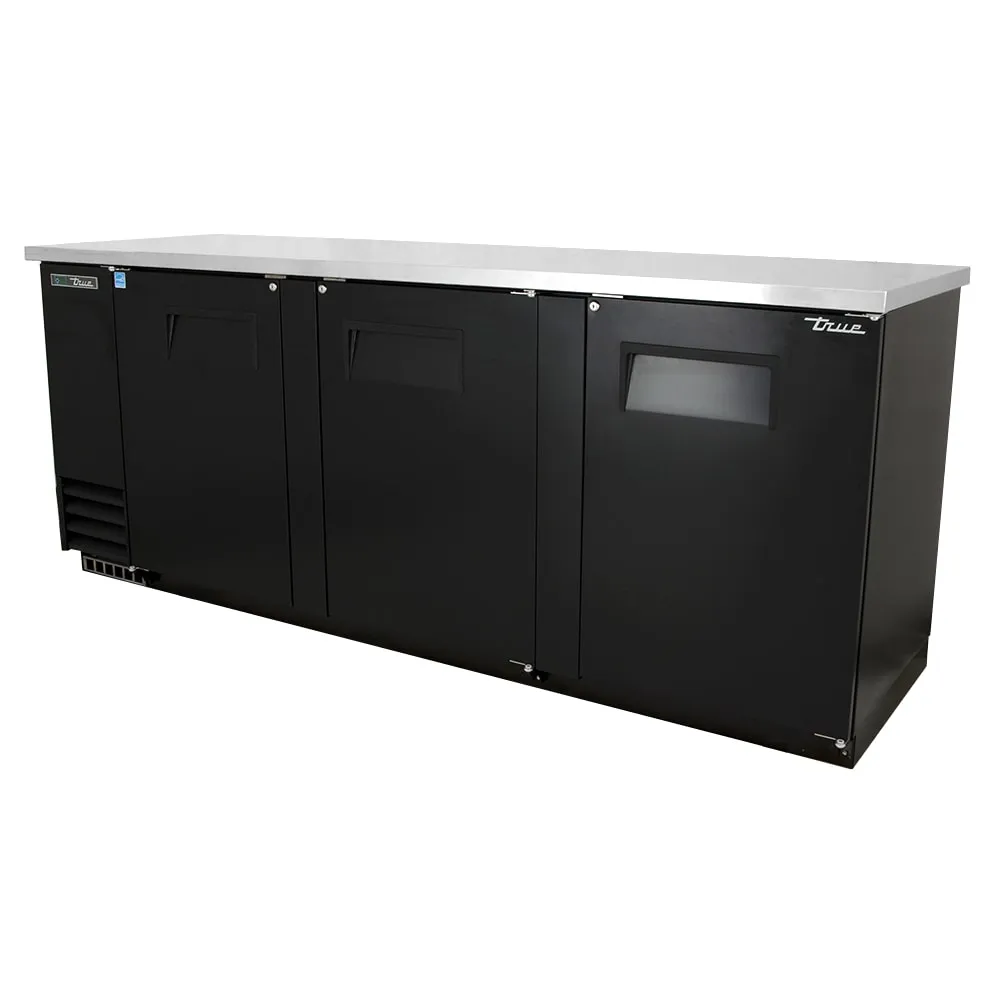

The True TBB-4-HC three-section bar refrigerator has a refrigeration system that is accessible from behind the front grille. Its slide-out design ensures users can access the components for maintenance. To save energy and reduce heat production. the unit has fans with electronically commutated motors that circulate cold air.

When the compressor turns on. the condensing fan motor blows in a reverse direction. eliminating debris from the condensing coil's surface. A cleaner surface enables the coil to keep products cool for longer periods of time without using as much energy. By implementing preventive maintenance. the unit's lifespan can increase.

Temperatures in the cabinet range from 33 to 38 degrees Fahrenheit and are maintained by R290 hydrocarbon refrigerant. Magnetic gaskets on the doors prevent cold air from leaking out. while polyurethane insulation keep warm air from seeping in.

Each of the three doors has an exterior made from laminated black vinyl. which matches the rest of the cabinet's exterior. Measuring 12 inches long and recessed to save space. the handles on these doors are permanently attached by a sheet metal interlock. The front and sides of the unit are covered in a wear-resistant laminated black vinyl that complements the stainless steel countertop bar area. To accommodate various products. the True TBB-4-HC back bar cooler has six black PVC-coated wire shelves that are adjustable in¹₂-inch increments. This unit can hold four half-barrel kegs or 152 six-packs of 12-ounce cans.

Product Details

• Accommodates (152) 6-packs of 12-oz. cans
• 6 black PVC-coated wire shelves are adjustable in¹₂-in. increments
• Holds 4 half-barrel kegs when the shelves are removed
• Interior LED lights brighten the cabinet
• Exterior features durable black vinyl front and sides with an aluminum back
• Galvanized steel walls and stainless steel floor in the interior
• Door threshold protector prevents scratches and dents while loading heavy kegs
• Foamed-in-place polyurethane insulation helps retain cold air
• 3 doors have a laminated black vinyl exterior
• 12-in. recessed door handles are permanently attached since they are foamed in place with a sheet metal interlock
• Magnetic door gaskets help prevent cold-air leaks
• Locks on the doors eliminate unauthorized access

Refrigeration System

• Temperature range: 33-38 degrees F
• Uses R290 hydrocarbon refrigerant
• Electronically commutated fan motors operate efficiently. reducing energy use and heat production
• Reverse condensing fan motor technology blows toward condensing coil for 20 seconds when compressor turns on
• Condensing unit is accessible behind the front grille and slides out for convenience
• Evaporator is coated in epoxy for resistance to corrosion

Dimensions & Utilities

• 2 right shelves: 20³₄in. W x 21¹₄in. D
• 2 middle and 2 left shelves: 31³₄in. W x 21¹₄in. D
• Overall: 90³₈in. W x 28³₄in. D x 37 in. H
• 2.8 A.¹₄HP
• 115 V/60 Hz/1 ph. 7-ft. cord with a NEMA 5-15P plug
