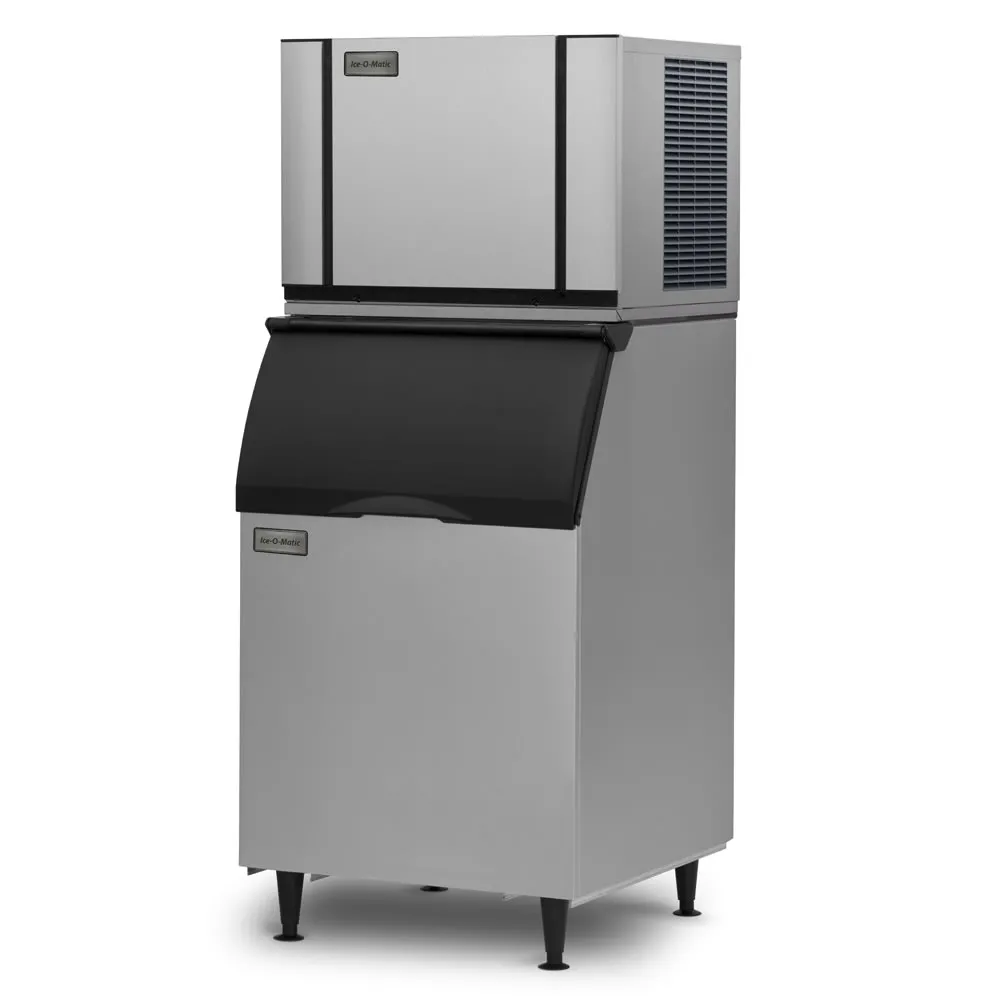

The Ice-O-Matic CIM0530HA/B55PS ice maker head with bin has a compact. modular design that's just 30 inches wide to fit into locations with limited space. Able to hold 510 pounds of ice at a time. the bin is made with a durable rotocast aluminum exterior that resists dents and corrosion. Inside. it's lined with foamed polyethylene to insulate the ice and prevent it from melting; the interior is accessible via its top-hinged. sloped door.

Providing digital diagnostics. the Ice-O-Matic CIM0530HA/B55PS universal control board streamlines operation and simplifies calibrating multiple units. To alert users when cleaning is required. the ice maker has a dedicated smart LED light. and its LED display helps users monitor the unit's settings at a glance. To initiate sanitizing and descaling procedures. this machine includes one-touch controls.

Ice Maker Details

• Part of the Elevation Series
• 520-lb. maximum daily ice production
• 390-lb. AHRI-certified ice production
• Half-size ice cubes
• Cube dimensions:³₈in. x⁷₈in. x⁷₈in.
• Air cooled
• Condenser is self-contained to conserve space
• Dual setup exhausts hot air from top and side
• Plastic foodzone doesn't harbor bacterial buildup
• Removable. dishwasher-safe. BPA-free components
• Primed with PURE ICE antimicrobial treatment to prevent cross contamination
• 1-touch sanitizing and descaling controls
• Smart LED light alerts employees if cleaning is needed
• LED display enhances visibility
• Digital diagnostics supplied by universal control board with Smart Harness
• Some components can be recycled
• Ideal ambient temperature: 50-100 degrees F
• Ideal incoming water temperature: 40-100 degrees F
• Ideal water pressure: 20-80 PSIG
• 6.252-BTU heat transfer capacity

Bin Product Details

• 510-lb. capacity
• Rotocast aluminum exterior lends the unit a finished appearance
• Interior is lined with foam-insulated polyethylene
• Top-hinged. sloped front access door
• Adjustable. 6-in. legs add stability
• Multiple bin top sizes are available and aresold separately

Dimensions & Utilities

• Ice maker: 30.25 in. W x 24.25 in. D x 21.25 in. H
• Bin: 30 in. W x 31 in. D x 50 in. H
• 17.8 A. 5.87 kW
• 115 V/60 Hz/1 ph
• Ice maker potable water inlet:³₈-in. FPT
• Ice maker water outlet:³₄-in. FPT
• Electrical connection port:⁷₈-in. dia.
• Electrical connection junction box:⁷₈-in. dia.
