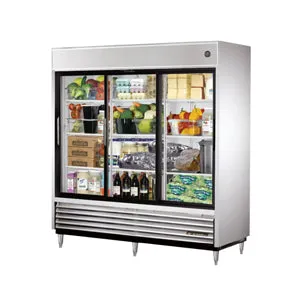

The refrigeration system in this True TSD-69G-LD reach-in three-section refrigerator has an extra-large evaporator coil. large condenser. and high-horsepower compressor. so it can maintain food-safe temperatures between 33 and 38 degrees Fahrenheit. Temperature is controlled by the user and shows up on the external digital display. For streamlined maintenance. the condensing unit is bottom mounted. and its compressor is located in the coolest and the most grease-free area of a kitchen.

Storage space is available on top of this refrigerator because of the condenser's placement. Using environmentally friendly R134A refrigerant. the True TSD-69G-LD reach-in refrigerator has a capillary tube system that is self-contained and factory engineered. Low-velocity. high-volume airflow is created by large fans to increase energy efficiency and eliminate hot spots inside.

Inside the refrigerator. surfacesexcept for the floorare covered in clear-coated aluminum. and the stainless steel floor has rounded corners that do not trap debris. In case of leaks. both the floor and PVC-coated shelves resist corrosion. and for convenience. the shelves are adjustable in¹₂-inch increments to fit various products. LED lighting and glass doors ensure contents are visible. cutting down on time spent searching for items. The doors slide closed on their own because they have a counterbalanced weight system.

Product Details

• Part of the TSD series
• Clear-coated aluminum liner is efficient to clean
• Floor is made of stainless steel and has coved corners
• Double-pane. thermal glass doors
• 12-in.-long. molded plastic handles
• 6-in. legs raise unit off the floor
• Digital temperature display on exterior
• Entire cabinet structure is insulated with high-density polyurethane foam
• Enhanced visibility throughout cabinet is provided by safety-shielded. LED lighting
• Anodized aluminum ends on stainless steel exterior
• Steel back is coated with GalFan to resist corrosion
• Self-closing doors have counterbalanced weight system for smooth movement
• Sliding doors have durable V-channel and bearings made of stainless steel
• Shelf support pilasters match cabinet interior
• Shelves can be adjusted in increments of¹₂in.
• Comes with 9 heavy-duty. PVC-coated wire shelves
• Each shelf comes with 4 chrome-plated clips
• Heavy-duty. welded steel frame coated with black powder for corrosion protection

Refrigeration System

• Temperature holding range: 33-38 degrees F
• Bottom-mounted. self-contained condensing unit provides convenient maintenance access
• Compressor's low placement frees up storage space on top of unit
• Capillary tube system uses environmentally friendly R134A refrigerant
• Corrosion-resistant epoxy coating on evaporator
• Low-velocity. high-volume airflow provided by large fan blades for energy efficiency
• Design ensures short run times and fast temperature recovery

Dimensions & Utilities

• Shelves: 23⁷₈in. W x 20⁹₁₆in. D
• Overall: 78¹₈in. W x 30 in. D x 84¹₂in. H
• 12 A.¹₂HP
• 115 V/60 Hz/1 ph. 9-ft. cord with a NEMA 5-15P plug

True Refrigeration TSD-69G-LD Specifications
