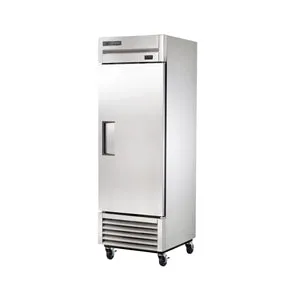

True RefrigerationTS-23-HCDescription
The True TS-23-HC single-section refrigerator has a stainless steel exterior and interior that resists rust. scratches. and dents. Its steel frame rail adds structure and strength. and the polyurethane insulation retains cold air. With a positive seal. the door closes by itself to prevent warm air from being taken in. while gaskets around the door prevent cold air leaks and remove for cleaning and replacing. Mobility is provided by the 4-inch-diameter castors.
The LED interior lights illuminate the cabinet. Three shelves are coated in PVC to resist corrosion and are adjustable in12-inch increments. To maintain cool temperatures. the True TS-23-HC single-section refrigerator uses R290 hydrocarbon refrigerant that maintains a set temperature between 33 and 38 degrees Fahrenheit. Its refrigeration system is mounted on the bottom for accessibility. and a consistent volume of air is moved around the cabinet with condenser and evaporator fan motors.
When the compressor is turned on. it directs air in a reverse direction to blow up dust. dirt. or debris collection. This helps maintain a clean condensing coil for efficient operation. reducing overall energy usage. Preventative maintenance should still be applied to this unit to ensure it's working properly.
Product Details
- Exterior and interior have a stainless steel liner and floor
- Steel frame rail adds structure
- Polyurethane insulation is foamed in place
- Self-closing door helps keep cold air inside
- 12-in. recessed handle simplifies opening the door
- Door gaskets are removable without tools
- 3 PVC-coated shelves are adjustable in12-in. increments
- Interior is illuminated with safety-shielded lights
- 4-in. castors provide mobility
Bottom-mounted Refrigeration System
- R290 hydrocarbon refrigerant is used by the capillary tube system
- Temperature holding range: 33-38 degrees Fahrenheit
- Digital display is user friendly
- Lowest shelf is raised to a comfortable height for reaching products
- Epoxy-coated evaporator resists corrosion
- Compressor fan motor uses a 20-second reverse blowing mechanism to clean off condensing coil
Dimensions & Utilities
- Shelves: 2278in. W x 2314in. D
- Overall: 27 in. W x 2912in. D x 8338in. H
- 2.2 A.14HP
- 115 V/60 Hz/1 ph. 9-ft. cord with a NEMA 5-15P plug
True Refrigeration TS-23-HC Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Additional Info | Contact Customer Service for Additional Information |
| Color | Silver |
| Compressor Location | Bottom |
| Cubic Feet | 23 |
| Depth (in) | 29.5 |
| Door Type | Solid |
| Doors | Full |
| Evaporator Type | Capillary Tube |
| Height (in) | 78.38 |
| Hertz | 60 |
| Interior Material | Stainless Steel |
| Sections | 1 |
| Number of Shelves | 3 |
| Supports | Casters |
| Thermometer Type | Digital |
| Type | Reach In |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 7-year Compressor |
| Width (in) | 27 |
| Series | TS Series |
| Refrigerant | R290 (Hydrocarbon) |
| No. of Doors | 1 |
| Phase | 1 |
| Rating | Best |
| Product | Reach-In Refrigerators |
| Made in USA | Yes |
| Product Type | Commercial Refrigeration |
| NEMA | 5-15P |
| Hinge Configuration | Right |
| Weight | 285.00 |
