True RefrigerationTDM-DZ-77-GE/GE-W-WDescription

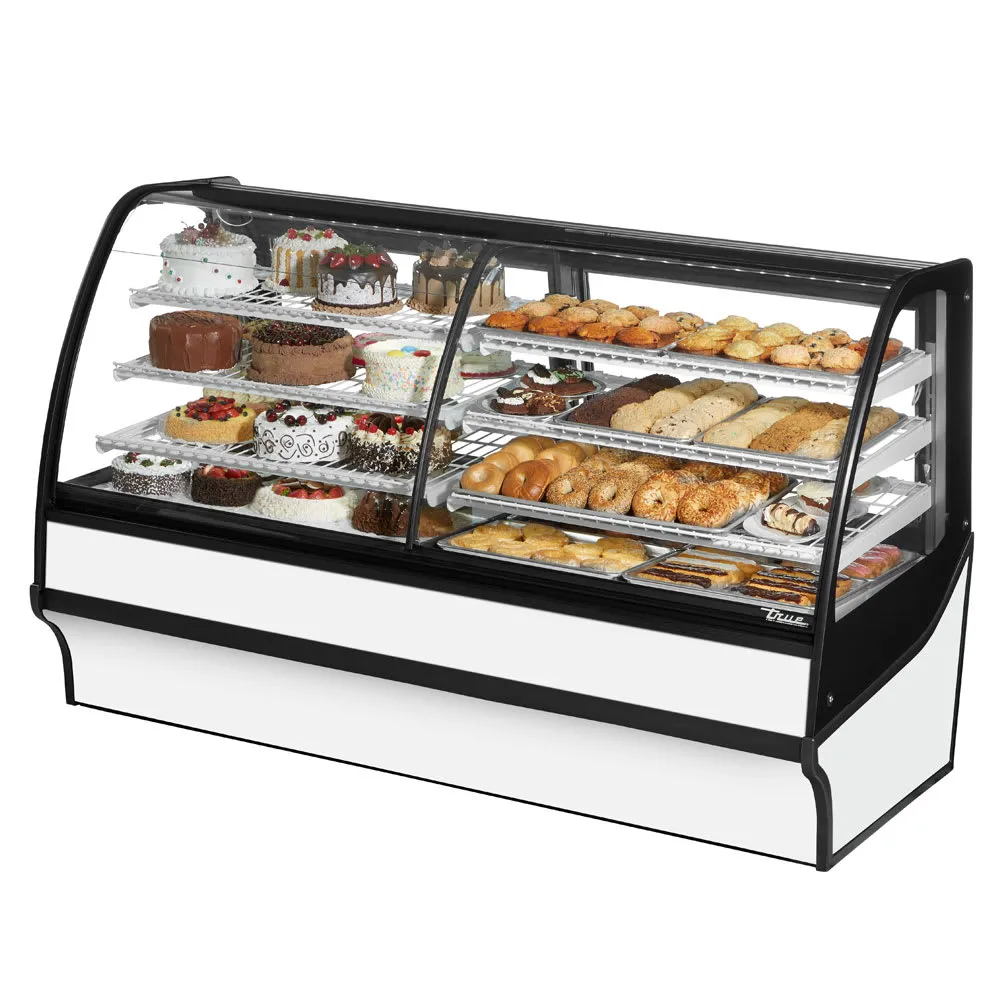

Goods in the True TDM-DZ-77-GE/GE-W-W dual-zone bakery case are surrounded by glass on all sides. so products can be seen. Instead of two flat pieces of glass. the front piece of glass is curved. providing an elegant. unobstructed view of contents. while LED lights ensure all products on the adjustable shelves can be seen. Sliding doors on the rear offer access for grabbing and serving. and the front swings up for full cleaning access.
Both the interior and exterior of the True TDM-DZ-77-GE/GE-W-W dual-zone display case have been coated with white powder. adding corrosion resistance. A steel frame rail supports the structure that is insulated by polyurethane foam. and the unit has an unrefrigerated section and a refrigerated section. the latter keeping contents from 33 to 41 degrees Fahrenheit. It uses environmentally friendly R290 hydrocarbon refrigerant and maintains dirt-free condensing coils with a reversing fan. For quick access. the refrigeration unit pulls out.
Product Details
- Sturdy aluminum and steel construction
- White powder coating protects the interior and exterior from scratches and corrosion
- Polyurethane foam enhances the structure of the cabinet
- Strong steel frame rail
- Rear has sliding glass doors with 12-in. handles
- Front glass raises for complete access
- Glass front and sides provide views from multiple angles
- LED enhance visibility
- 6 adjustable. PVC-coated shelves
- Each shelf can accommodate 150 lbs. of product
- Can hold (8) 18-in. W x 26-in. D pans and (12) 12-in. W x 18-in. D pans(sold separately)
- Leg levelers stabilize the unit
Refrigeration System
- Temperature holding range: 33-41 degrees F
- Electronic temperature controls
- Operates with R290 hydrocarbon refrigerant that is kinder to the environment than other options
- Capillary tubes regulate refrigerant flow
- Self-contained system houses cooling components in 1 place
- Epoxy-coated evaporator avoids corrosion
- Pull-out condenser provides cleaning access
- Reversing fan blows debris off condensing coils
Dimensions & Utilities
- 7714in. W x 39 in. D x 49116in. H
- 10 A.14HP
- 115 V/60 Hz/1 ph. 8-ft. cord with a NEMA 5-15P plug
True Refrigeration TDM-DZ-77-GE/GE-W-W Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Access | Full Service |
| Color | White |
| Depth (in) | 39 |
| Design | Curved |
| Door Type | Sliding |
| Height (in) | 49.13 |
| Hertz | 60 |
| Number of Levels | 4 |
| Refrigeration Type | Refrigerated |
| Shelving Type | Wire |
| Voltage | 115 |
| Warranty | 3 year parts & labor; 7 year compressor |
| Width (in) | 77.25 |
| Series | TDM Series |
| Phase | 1 |
| Product | Bakery Display Cases |
| Product Type | Commercial Refrigeration |
| Weight | 920.00 |
