True RefrigerationTDM-DZ-59-GE/GE-W-WDescription

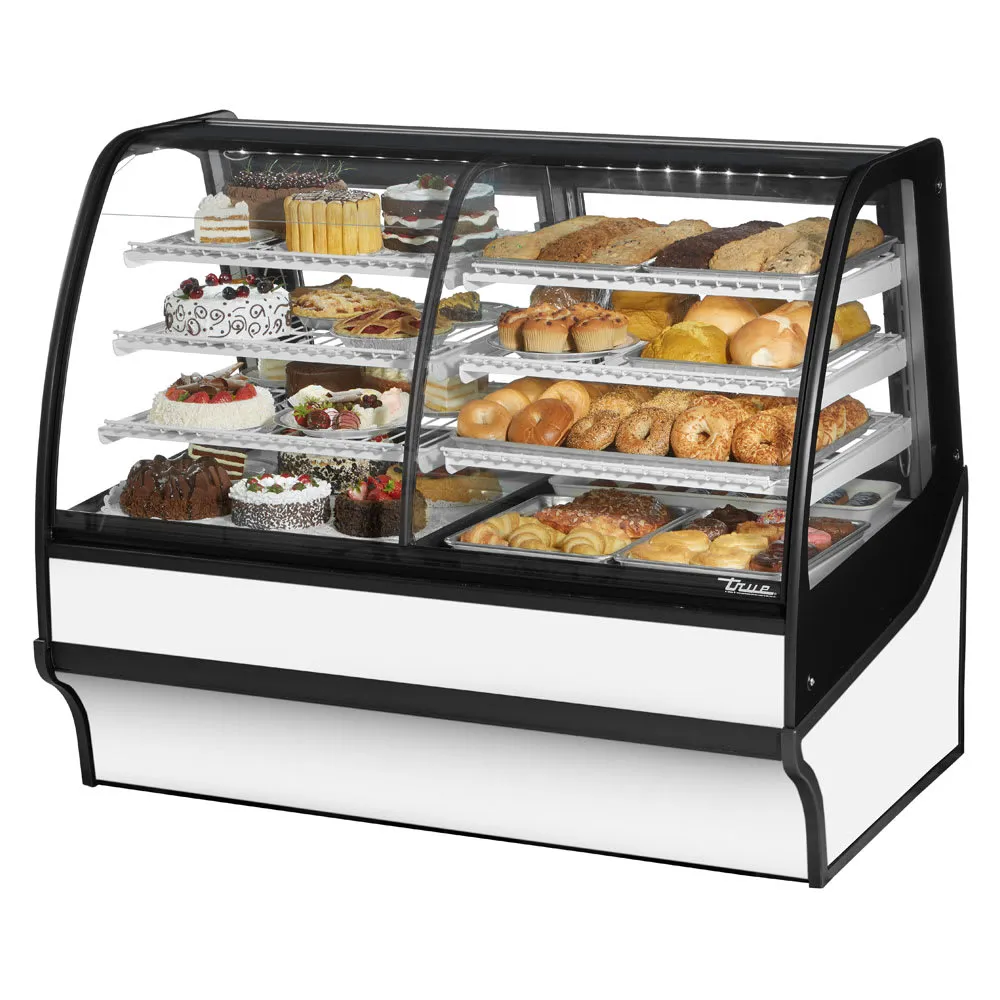

The True TDM-DZ-59-GE/GE-W-W dual-zone bakery case is made of aluminum and steel to withstand constant use while white powder coats the interior and exterior. adding strength and corrosion resistance. A heavy-duty frame rail helps hold parts steady. and leg levelers can accommodate uneven floors. Sides surrounding the product are tempered glass. and a curved front and LED lights increase visibility. Product can be quickly accessed through the sliding glass doors on the back. For full access. the front glass can be raised.
The True TDM-DZ-59-GE/GE-W-W dual-zone display case has two sectionsone for dry baked goods and one for chilled desserts. To keep cold temperatures. capillary tubes control the flow of R290 hydrocarbon refrigerant. resulting in temperatures that can be set from 33 to 41 degrees Fahrenheit. Electronic controls and a reversing fan in the unit keep the condensing coils dust free. and the condenser slides out when maintenance is needed.
Product Details
- Durable aluminum and steel construction
- Interior and exterior powder coating adds corrosion protection
- Bend-resistant. heavy-duty frame rail
- Polyurethane insulation keeps heat out of the cabinet
- Rear doors slide open for access
- Easy-grip. 12-in. handles
- Curved front swings up
- Glass sides and front provide a view into the interior
- 6 adjustable. wire shelves
- Shelves can support 150 lbs. each
- LED lighting helps keep food visible on the lower shelves
- Can hold (8) 18-in. W x 26-in. D pans and (4) 9-in. W x 26-in. D pans(sold separately)
- Leg levelers can stand unit upright on tile floors
Refrigeration System
- Temperature holding range: 33-41 degrees F
- Electronic temperature controls
- Runs with eco-friendly R290 hydrocarbon refrigerant
- Evaporator resists corrosion because it is coated in epoxy
- Self-contained system keeps evaporator and condenser together
- Fan reverses to help clean debris off condensing coils
- Condenser pulls out for maintenance access
Dimensions & Utilities
- 5914in. W x 39 in. D x 4918in. H
- 10 A.14HP
- 115 V/60 Hz/1 ph. 8-ft. cord with a NEMA 5-15P plug
True Refrigeration TDM-DZ-59-GE/GE-W-W Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Access | Full Service |
| Color | White |
| Depth (in) | 39 |
| Design | Curved |
| Door Type | Sliding |
| Height (in) | 49.13 |
| Hertz | 60 |
| Number of Levels | 4 |
| Refrigeration Type | Refrigerated |
| Shelving Type | Wire |
| Voltage | 115 |
| Warranty | 3 year parts & labor; 7 year compressor |
| Width (in) | 59.25 |
| Series | TDM Series |
| Phase | 1 |
| Product | Bakery Display Cases |
| Product Type | Commercial Refrigeration |
| Weight | 760.00 |
