True RefrigerationTDM-DZ-59-GE/GE-B-WDescription

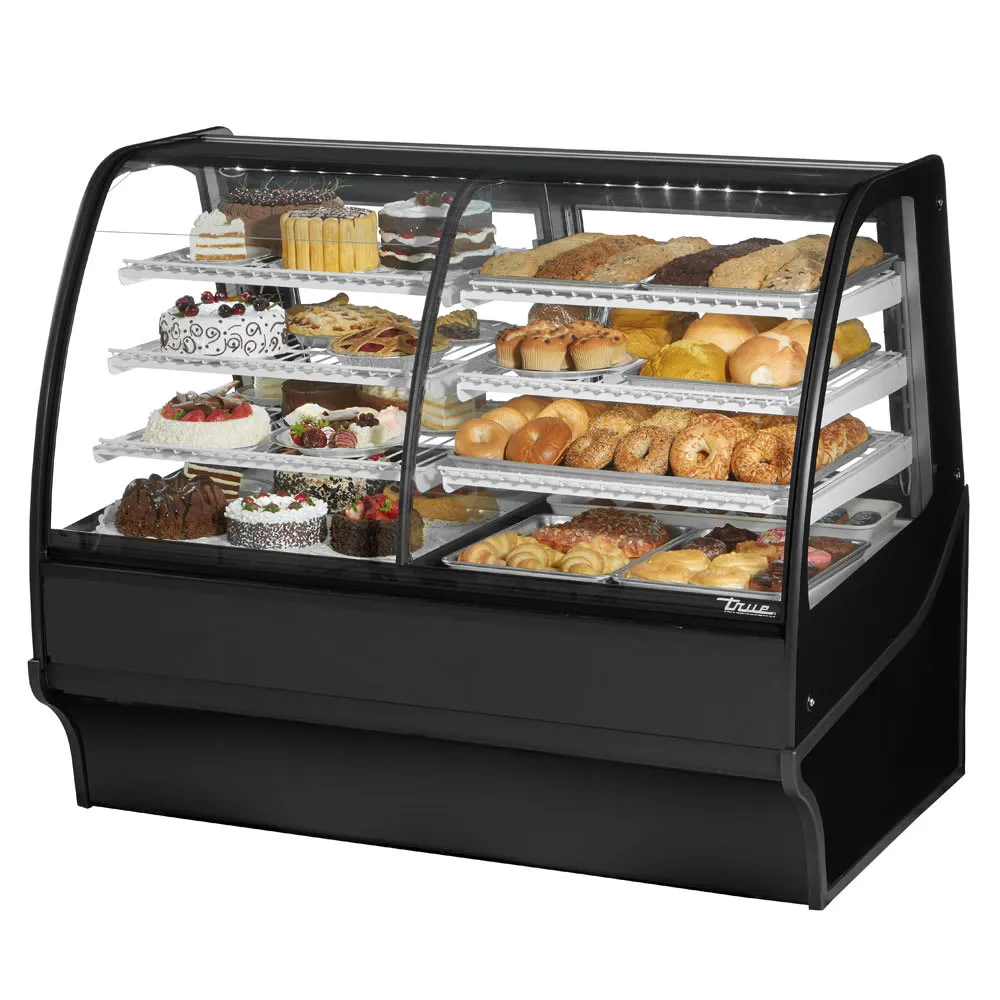

The True TDM-DZ-59-GE/GE-B-W dual-zone bakery case has a glass front and sides. showing off products to passersby while LED lights brighten the interior and draw the eye. Customers can stand close to the unit and still see the products through its curved front while six white. PVC-coated shelves on the inside support baked goods. These shelves can be raised or lowered to fit various products. From the back. staff members can slide open the rear doors and quickly serve customers. while the front lifts up for cleaning and rearranging food.
The True TDM-DZ-59-GE/GE-B-W dual-zone display case is divided into two sectionsregular and refrigeratedas the refrigerated system keeps contents from 33 to 41 degrees Fahrenheit to prevent desserts with chocolate or whipped cream from melting. It keeps cool by running R290 hydrocarbon refrigerant through capillary tubes and retains cold air with polyurethane insulation. To ensure smooth operation. a reversing fan helps circulate air and clean dirt off the condenser coils. Fitting into most themes. this unit has a black-coated exterior and contrasting white interior.
Product Details
- Black-coated aluminum exterior resists dings and corrosion
- White-coated steel interior resists scrapes and scratches
- Steel frame rail provides structure
- Dense. polyurethane insulation in walls
- Sliding glass doors hasten access
- 12-in. door handles
- Front glass panel opens for cleaning
- Tempered glass front and sides display products
- LED lights brighten the interior
- 6 heavy-duty. PVC-coated shelves
- Adjustable shelves can hold 150 lbs. each
- Can hold (8) 18-in. W x 26-in. D pans and (4) 9-in. W x 26-in. D pans(sold separately)
- Leg levelers steady the unit
Refrigeration System
- Temperature holding range: 33-41 degrees F
- Electronic temperature control
- Environmentally friendly R290 hydrocarbon refrigerant
- Capillary tube system has cooling components in a single area
- Epoxy-coated evaporator resists corrosion
- Reversing fan helps clean debris off condenser coils
- Quick-access condenser pulls out
Dimensions & Utilities
- 5914in. W x 39 in. D x 4918in. H
- 10 A.14HP
- 115 V/60 Hz/1 ph. 8-ft. cord with a NEMA 5-15P plug
True Refrigeration TDM-DZ-59-GE/GE-B-W Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Access | Full Service |
| Color | Black |
| Depth (in) | 39 |
| Design | Curved |
| Door Type | Sliding |
| Height (in) | 49.13 |
| Hertz | 60 |
| Number of Levels | 4 |
| Refrigeration Type | Refrigerated |
| Shelving Type | Wire |
| Voltage | 115 |
| Warranty | 3 year parts & labor; 7 year compressor |
| Width (in) | 59.25 |
| Series | TDM Series |
| Phase | 1 |
| Product | Bakery Display Cases |
| Product Type | Commercial Refrigeration |
| Weight | 770.00 |
