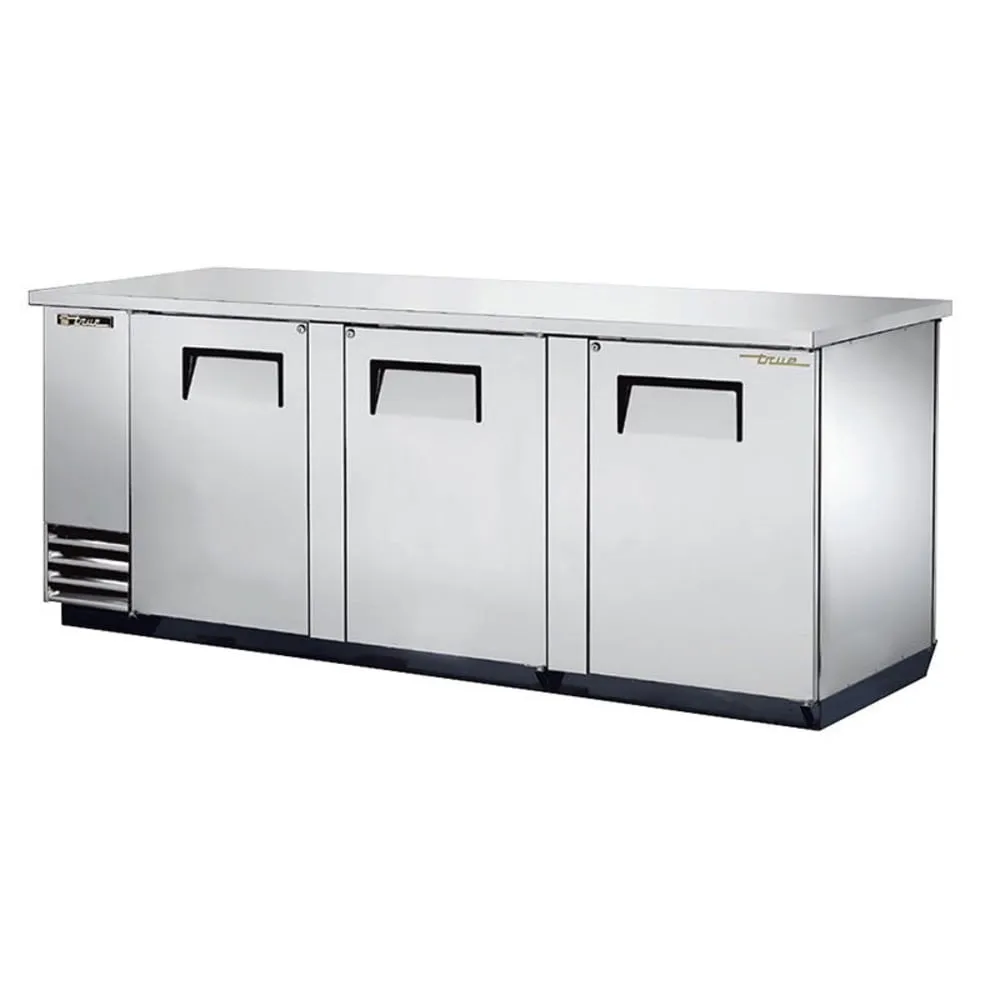

Doors on the front and back of the True TBB-4PT-S three-section bar refrigerator form a pass-thru unit to conveniently connect the front of the house with the back. Fitted with locks to prevent tampering. these doors have 12-inch handles that are recessed to save aisle space. The exterior is made mostly of heavy-duty stainless steel. along with the stainless steel countertop. which provides a place for prepping drinks and garnishes. This unit can accommodate 152 six-packs of 12-ounce cans on six adjustable coated wire shelves. If these shelves are removed. the cabinet accommodates four half-barrel kegs.

When staff need to service or clean the True TBB-4PT-S pass-thru back bar cooler. its slide-out condensing unit can be accessed behind the front grille. The motors for the fans are electronically commutated. so they operate efficiently while reducing energy use and heat production. R290 hydrocarbon refrigerant maintains cold temperatures between 33 and 38 degrees Fahrenheit and is better for the environment than traditional options.

Product Details

• Accommodates (152) 6-packs of 12-oz. cans
• 6 adjustable PVC-coated wire shelves
• Can hold 4 half-barrel kegs when the shelves are removed
• LED lighting in the cabinet enhances product visibility
• Stainless steel exterior front. back. sides. and countertop resist corrosion and scratches
• Galvanized steel interior walls with a durable stainless steel floor
• Door threshold has protection from dents when loading kegs and cans
• Foamed-in-place polyurethane cabinet insulation prevents cold air from leaking out

Pass-thru doors

• 3 doors on the front and 3 on the back create a pass-thru design
• 12-in. handles are recessed to save space in the aisles
• Magnetic gaskets create a seal to prevent cold-air leaks
• Locks reduce the risk of theft and tampering

Refrigeration System

• Temperature range: 33-38 degrees F
• Uses R290 hydrocarbon refrigerant
• Fan motors are electronically commutated and operate efficiently. save energy. and reduce heat production
• Accessible slide-out condensing unit sits behind the front grille
• Evaporator is coated in corrosion-resistant epoxy

Dimensions & Utilities

• 2 right and 2 left shelves: 23¹₂in. W x 21¹₄in. D
• 2 middle shelves: 28¹₄in. W x 21¹₄in. D
• Overall: 90³₈in. W x 31 in. D x 37 in. H
• 8.8 A.¹₂HP
• 115 V/60 Hz/1 ph. 7-ft. cord with a NEMA 5-15P plug
