True RefrigerationSTG2R-2S-HCDescription

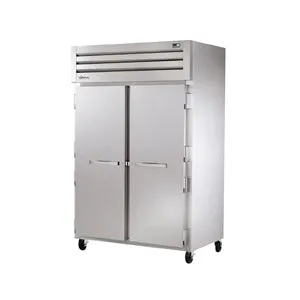

The True STG2R-2S-HC two-section reach-in refrigerator has a stainless steel front and doors with aluminum exterior sides. Its interior has an aluminum rear and walls with a stainless steel ceiling and floor. Cold air stays inside the cabinet since it is insulated with polyurethane. and the doors stay open past 120 degrees so product can be put in and taken out with ease. Magnetic gaskets around the doors prevent air leaks. and LED interior lights shine on product for visibility. This unit is NSF compliant to hold open food product on six shelves.
The top-mount refrigeration system is separated from the floor. so it resists taking in dirt that could clog the condenser. It uses a capillary tube system to send R290 hydrocarbon around the cabinet to hold it at temperatures between 33 and 38 degrees Fahrenheit. The operator can monitor temperatures since they are digitally displayed. and they can be set on Celsius or Fahrenheit for convenience. The True STG2R-2S-HC two-section refrigerator has condenser and evaporator fan motors that move a consistent volume of air. Its evaporator is coated in epoxy to resist corrosion.
The compressor's fan motorhas a self-cleaning mechanism that promotes efficient system operation.Each time the compressorcycles on.the fanblows air in reversefor20 seconds toclean the condenser coil. removing anydirt. dust. or debris buildup.Intendedtobe usedwithregularpreventative maintenance recommendations. this featurelengthensthe unit'slifespan andoptimizessystem performance.
Product Details
- Stainless steel exterior doors and front
- Aluminum exterior sides
- Interior side walls and back are aluminum
- Interior ceiling and floor are stainless steel
- Cold air is retained by polyurethane insulation
- 5-in.-dia. castors lock on the front set
- Easily load and unload product since the doors stay open past 120 degrees
- Magnetic door gaskets keep air inside
- Visibility is provided by the LED interior lights
- 6 shelves hold product
Self-contained Refrigeration System
- R290 hydrocarbon refrigerant in the capillary tube system keeps the cabinet cool
- Temperature holding range: 33-38 degrees F
- Digitally displayed temperature can be shown in Celsius or Fahrenheit
- Evaporator and condenser fan motors move a consistent volume of air
- 20-second fan reversalevery cycle to blow dust buildup off condenser coil
- Top-mount system will not easily take in dirt and debris
- Corrosion-resistant evaporator is coated in epoxy
Dimensions & Utilities
- 5258in. W x 3514in. D x 8418in. H
- 5.9 A.12HP
- 115 V/60 Hz/1 ph. 9-ft. cord with a NEMA 5-15P plug
True Refrigeration STG2R-2S-HC Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Additional Info | Contact Customer Service for Additional Information |
| Color | Silver |
| Compressor Location | Top |
| Depth (in) | 33.75 |
| Door Type | Solid |
| Doors | Full |
| Evaporator Type | Capillary Tube |
| Height (in) | 77.75 |
| Hertz | 60 |
| Interior Material | Aluminum |
| Sections | 2 |
| Number of Shelves | 6 |
| Supports | Casters |
| Thermometer Type | Digital |
| Type | Reach In |
| Voltage | 115 |
| Warranty | 3 year parts & labor; 7 year compressor |
| Width (in) | 52.63 |
| Series | Spec Series |
| Refrigerant | R290 (Hydrocarbon) |
| No. of Doors | 2 |
| Phase | 1 |
| Rating | Spec |
| Product | Reach-In Refrigerators |
| Made in USA | Yes |
| Product Type | Commercial Refrigeration |
| NEMA | 5-15P |
| Hinge Configuration | Left/Right |
| Weight | 590.00 |
